The current page:Home > Products > Welding power source > TIG/Pulse TIG/MMA
Products

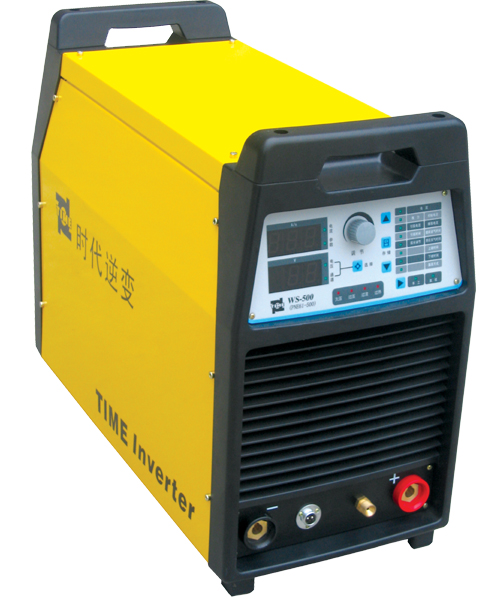

WS-500(PNE61-500)

Feature code:

Main characteristics:

● IGBT inverter technology

● Wide range of power supply

● Good product consistency With a variety of TIG operation mode

● High frequency arc ignition, welding penetration well

● Performance stable, strong antiinterference ability

● Thermal design is reasonable to protect the machine perfectly

● Digital display for current to accurate preset welding current before welding

● With MMA function (200A above model)

● The welding cables can be lengthened to 50~100M/50mm2
● RS-485 communication socket match RC-6, RC-7 remote controller
● Realization of remote setting and supervision by TIME TWPM welding process management system
● Cellulose welding is optional


Model

WS-500

Company type

PNE61-500

Rated input voltage(V)

3 phase  380V±15%  50~60Hz

Rated Input capacity (KW)

23.5

No-load voltage (V)

78±5%

Output current adjusting range(A)

5~510

Slope up time (s)

0.1~99.9

Slope down time (s)

0.1~99.9

Pre-flow time (s)

0~13

Post-flow time (s)

0.1~50

Ignition time (s)

0.01~1s

Duty cycle (40℃)

60%

Efficiency (η)

85%

Power factor(cosΦ)

0.93

Insulation grade

F

Case protection grade

IP23S

Cooling

Wind

Dimensions (mm)

660×300×530

Net weight (kg)

41
