The current page:Home > Products > Welding power source > TIG/Pulse TIG/MMA
Products

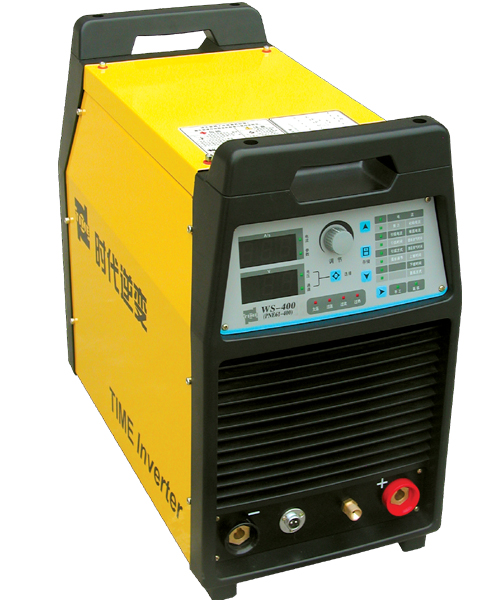

WS-400(PNE61-400)

Feature code:
PNE61-series is a whole digital DC TIG/MMA arc welding machine based on the technologies of DSP, fuzzy control, wave control and adaptive control. It has wide application in non-consumable electrode argon arc welding for all sorts of metals except Al, Mg and their alloys, and manual arc welding for a variety of acid and basic electrodes.

Main characteristics:
● IGBT inverter.
● High reliability and excellent welding performance.
● Wide range of supply voltage.
● Multiple adjustable parameters and argon arc operation modes.
● Visual and easy to operate.
● RS-485 communication socket match RC-6, RC-7 remote controller

Realization of remote setting and supervision by TIME TWPM welding process management system
Cellulose welding is optional



Model

WS-400

Company type

PNE61-400

Rated input voltage(V)

3 phase  380V±15%  50~60Hz

Rated Input capacity (KW)

17

No-load voltage (V)

76±5%

Output current adjusting range(A)

5~410

Slope up time (s)

0.1~99.9

Slope down time (s)

0.1~99.9

Pre-flow time (s)

0~13

Post-flow time (s)

0.1~50

Ignition time (s)

0.01~1s

Duty cycle (40℃)

60%

Efficiency (η)

85%

Power factor(cosΦ)

0.93

Insulation grade

F

Case protection grade

IP23S

Cooling

Wind

Dimensions (mm)

560×300×530

Net weight (kg)

34
