The current page:Home > Products > CNC cutting machine > TDC series CNC cutting machine
Products

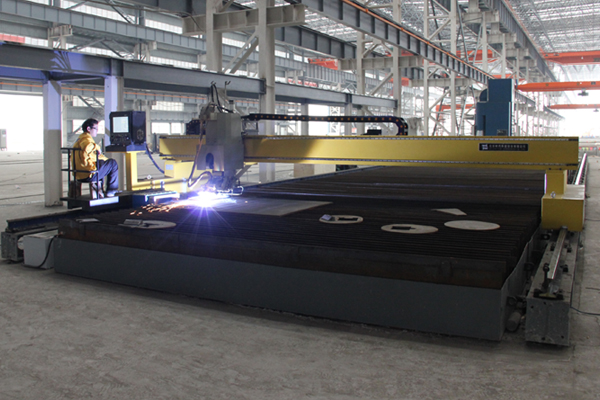

TDC IV-A Unlimited rotary type CNC cutting machine

Feature code:
  • Mainly used in shipbuilding, heavy duty pressure vessel, and huge steel structure industry etc.
  • Fixed angle and variable angle bevel of any geometric curve available.
  • The longitude rail is 43KG class rail. Latitude track is linear rail.
  • AC servo driving, transmission adopts precision planetary gear reducer.
  • Heavy gantry frame structure beam, dual drive.
  • Double anti-collision protection function of cutting torch.
  • The rotary head adopts the spatial linkage mechanism.


Track width (mm)

4000

4500

5000

5500

6000

Effective cutting width (mm)

3100

3600

4100

4600

5100

Overall width of machine (mm)

4800

5300

5800

6300

6800

Effective cutting length (mm)

Rail length—2500 (Can be customized)

Deflection angle of cutting torch (°)

-45~+45

Groove type

Groove-V, Groove-X or Groove-Y, Variable angle bevel

CNC system

EDGE Connect

Optional fine plasma power source

Hypertherm or Kjellberg

Nesting software

Australia Fastcam software

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
