The current page:Home > Products > Welding automation > Manipulator
Products

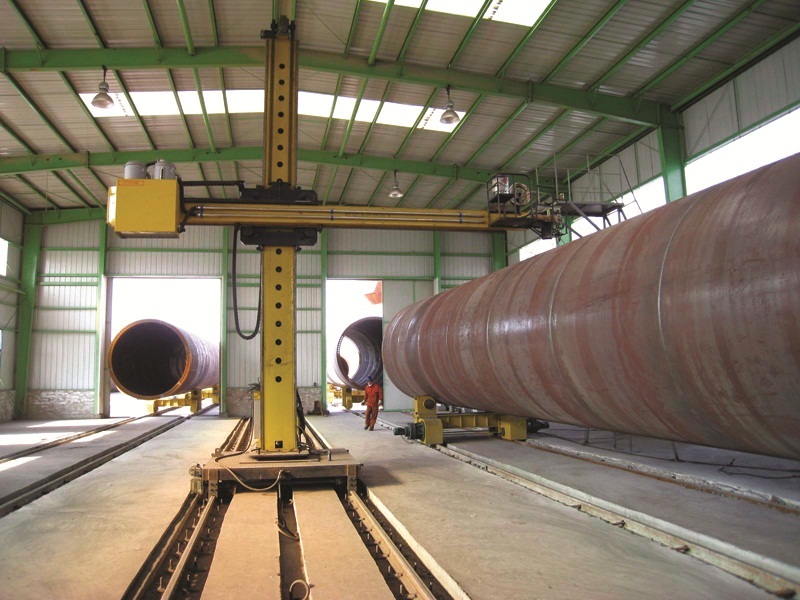

Standard TZ serials manipulator

Feature code:
  • Built in remote control interface, TIME manipulators can set up automatic welding center with TIME manipulator, positioner and other auxiliary equipments.
  • Modular structure, flexible configuration. Compatible with welding heads from different factories.
  • Boom extension, trolley moving and column rotation adopt AC variable frequency speed regulation technology.
  • The control cabinet and operator pendant can switch to each other, convenient for operators.
  • Welding oscillator, welding seam tracker and industrial monitor and so on are optional.
  • Optional: internal arm extension, double hanging brackets, manned platform,flux feeding and recovery system and fume extractors (open arc) etc.

Boom lifting stroke (m)

2

3

4

5

6

7

8

Boom lifting speed (mm/min)

950

Boom extension stroke (m)

2~4

2~6

3~7

3~8

3~8

3~8

4~8

Boom extension speed (mm/min)

100~1000(VVVF)

Maximum load at boom end (kg)

150

Column rotating angle (°)

±180

Column rotating speed (r/min)

0.02~0.2(VVVF)

Column locking mode

Mechanical lock or Pneumatic lock

Trolley moving speed (mm/min)

250~2500(VVVF)

Center distance of rail (mm)

P43/2000(P43/2500 specially used for 8×8)
